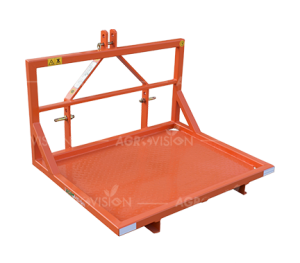

MOUNTED LOAD PLATFORM

MOUNTED LOAD PLATFORM

MOUNTED LOAD PLATFORM
  • It is a multifunctional transporting equipment.
  • It allows to transport items such as wood, feed, hay or other larger and heavier items.
  • Versatile equipment for small acreage and life style farms.
  • Robust frame structure made up with tube.
  • High quality welding and surface finishing.
  • Angle ribs beneath the floor for extra strength.
  • Available in wooden flooring (optional, on request only).
  • Can be produced in CAT-II linkage (optional, on request only).

MOUNTED LOAD PLATFORM

Horsepower Required

15-65 HP

Working Widths

4 Ft. & 6 Ft.

Hitch Types

CAT-I

Available Colors

Features

Technical Specification

MODEL A-LP4 A-LP6
FRAME 50 mm Square Tube & 50 mm Angle 50 mm Square Tube & 50 mm Angle
WIDTH 1220 mm (48 inch) 1830 mm (72 inch)
CAPACITY 500 kg (1102 lbs) 1000 kg (2205 lbs)
LINKAGE TYPECAT-ICAT-I
APPROX. WEIGHT 85 kg (187 lbs)105 kg (231 lbs)
TRACTOR POWER 15 - 50 HP 20 - 65 HP

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
