India Agrovision Implements

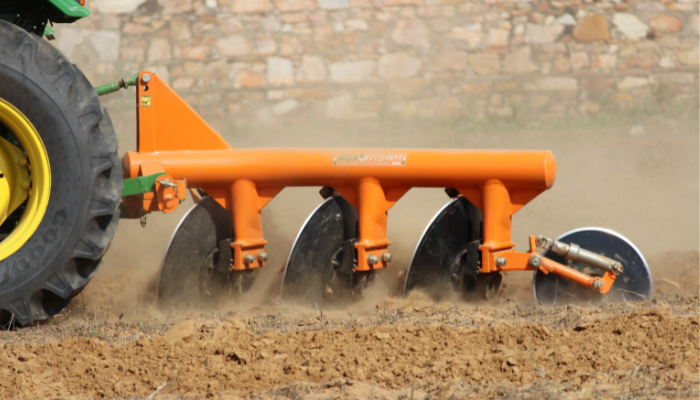

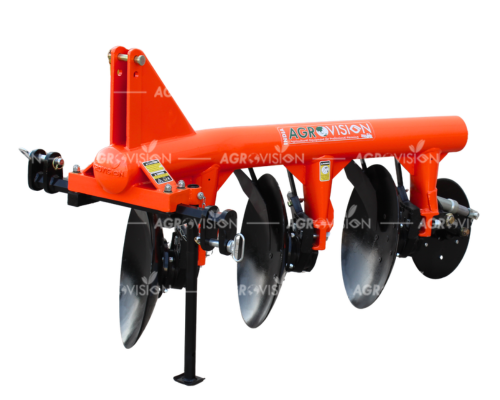

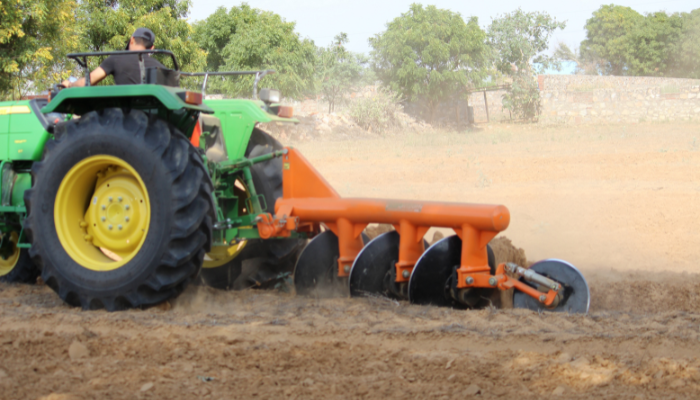

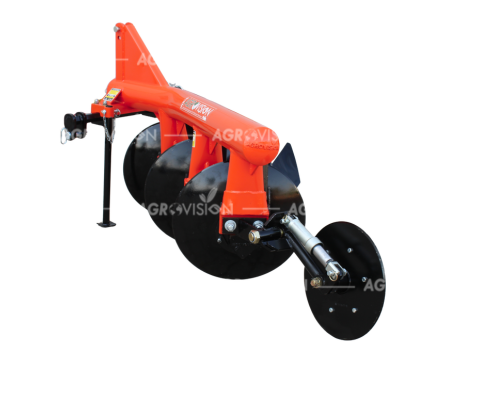

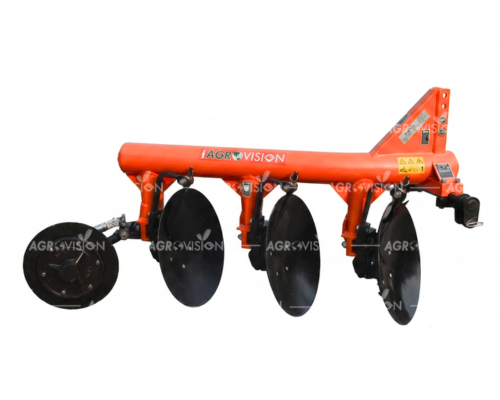

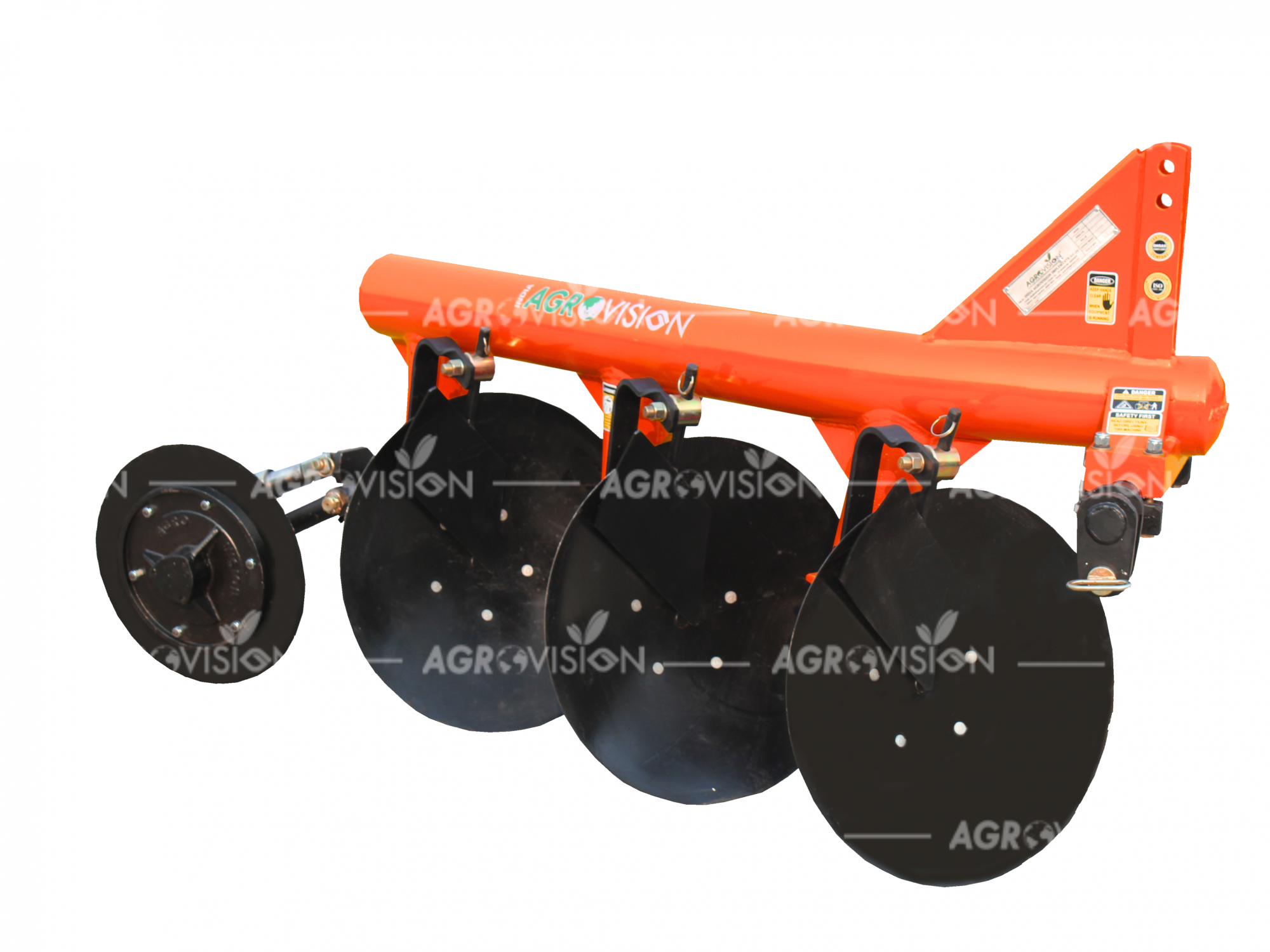

MOUNTED DISC PLOUGH

MOUNTED DISC PLOUGH is designed to work in all types of soil for basic functions such as soil breaking, soil raising, soil turning and soil mixing.

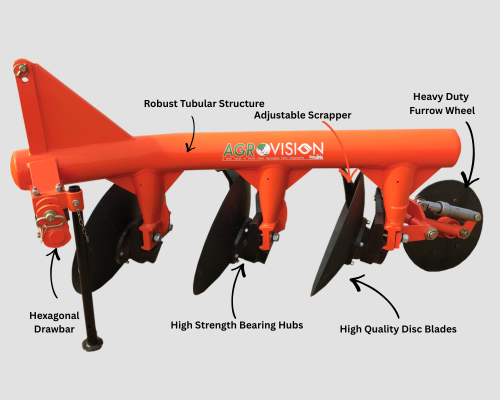

Heavy-duty tubular frame withstands tough plowing operations.
20-30% fuel saving as compared to Mould Board Plough.
Excellent performance in rooty and sticky or abrasive soil.
Adjustable and replaceable scrappers prevent grass and soil from sticking & help in effective overturning of soil.
Mainly used for soil cultivation in new fields or after crop harvest.
Heavy-duty rear furrow wheel with high-strength shocker.

Technical Specification

MODEL	A- DPT2	A-DPT3	A-DPT4	A-DPT5
FRAME	168 mm OD Round Tube	168 mm OD Round Tube	168 mm OD Round Tube	168 mm OD Round Tube
TILLAGE WIDTH	500 - 550 mm	875 - 925 mm	1150 mm -1200 mm	1575 – 1625 mm
NO. OF DISCS	2	3	4	5
TYPE OF DISCS	Plain	Plain	Plain	Plain
REQUIRED TRACTOR	40 - 50 HP	50 - 60 HP	60 - 80 HP	80 - 105 HP
APPROX. WEIGHT	310 kg.	410 Kg.	510 Kg.	620 Kg.
				.

* The Weight and working data contained are supplied for information only and are not binding. Specification and size can be altered as a part of ongoing product modification / improvement.
